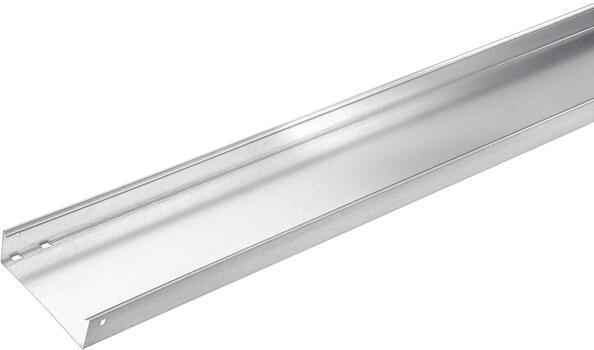

KB184TV GESL. 300 H=60 D=1.0 L=3
Gecommercialiseerd
Artikelnummer
CSU76003024
E-Nummer:
*
GTIN:
3606489448448
Omschrijving:
KB184TV GESL. 300 H=60 D=1.0 L=3
Wibe Group. CSU76003024 - Stago - tv184 gesloten kabelgoot 60x300mm l=3m 1mm thermisch verzinkt
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
KB184TV GESL. 300 H=60 D=1.0 L=3
Medium omschrijving
Stago - TV184 Gesloten kabelgoot 60x300mm L=3m 1mm Thermisch verzinkt
Lengte
3000 mm
Breedte
300 mm
Hoogte
60 mm
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Thermisch verzinkt
Milieu corrosieklasse
C4
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
Serie
KB184; TV184
GTIN
3606489448448
ETIM (EC000047-Kabelgoot)
Hoogte (EF000040)
60 mm
Breedte (EF000008)
300 mm
Materiaaldikte (EF000386)
1 mm
Lengte (EF001438)
3000 mm
Nuttige doorsnede (EF005140)
18000 mm²
Met bovendeel (EF007965)
Nee
Zijperforatie (EF001122)
Nee
Montageperforatie in bodem (EF004545)
Nee
Nato perforatie (EF006059)
Nee
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
Nee
Geschikt voor functiebehoud (EF007806)
Ja
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
*
Oppervlaktebescherming (EF000139)
*
Kleur (EF000007)
*
RAL (EF000116)
*
Gewicht (EF000167)
* kg/m
Max. veilige werkbelasting volgens IEC 61537 (EF016305)
* N/m
Overspanning tussen steunen volgens IEC 61537 (EF015363)
* mm
Belastingstesttype volgens IEC 61537 (EF015362)
*
Logistiek
Type verpakking 1
ST
Aantal verpakking 1
1
Gewicht verpakking 1
11,89 kg
Lengte verpakking 1
3000 mm
Breedte verpakking 1
300 mm
Hoogte verpakking 1
60 mm
Douane code
7308909800
Netto gewicht
11,89 kg
Certificering
ETIM classificatie
EC000047
Product downloads
Duurzaamheidsdocumenten
Downloads
Duurzaamheidsverklaringen
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
