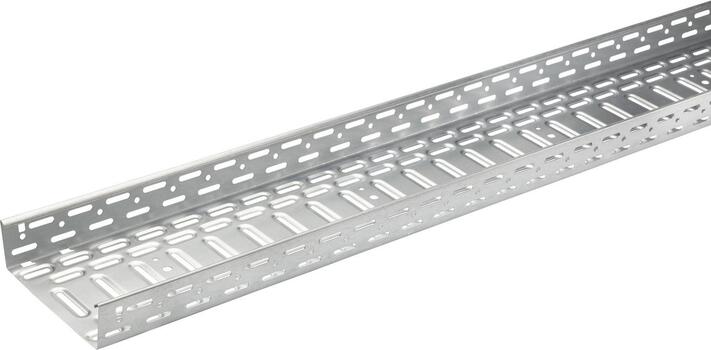

KB284Zplus GEPROF. 400 H=60 D=1.0 L=3
Gecommercialiseerd
Artikelnummer
CSU46014004
E-Nummer:
*
GTIN:
7321679140044
Omschrijving:
KB284Zplus GEPROF. 400 H=60 D=1.0 L=3
Wibe Group. CSU46014004 - Stago - Kb284zplus geprof. 400 h=60 d=1.0 l=3
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
KB284Zplus GEPROF. 400 H=60 D=1.0 L=3
Medium omschrijving
KB284Zplus GEPROF. 400 H=60 D=1.0 L=3
Lengte
3000 mm
Breedte
400 mm
Hoogte
60 mm
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Zinc+
Milieu corrosieklasse
C4
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
Serie
KB284
GTIN
7321679140044
ETIM (EC000047-Kabelgoot)
Hoogte (EF000040)
60 mm
Breedte (EF000008)
400 mm
Materiaaldikte (EF000386)
* mm
Lengte (EF001438)
3000 mm
Nuttige doorsnede (EF005140)
* mm²
Met bovendeel (EF007965)
Nee
Zijperforatie (EF001122)
Ja
Montageperforatie in bodem (EF004545)
Ja
Nato perforatie (EF006059)
Ja
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
*
Geschikt voor functiebehoud (EF007806)
Ja
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
*
Oppervlaktebescherming (EF000139)
Elektrolytisch verzinkt en gecoat
Kleur (EF000007)
*
RAL (EF000116)
*
Gewicht (EF000167)
* kg/m
Max. veilige werkbelasting volgens IEC 61537 (EF016305)
* N/m
Overspanning tussen steunen volgens IEC 61537 (EF015363)
* mm
Belastingstesttype volgens IEC 61537 (EF015362)
*
Logistiek
Type verpakking 1
ST
Aantal verpakking 1
1
Gewicht verpakking 1
11,12 kg
Lengte verpakking 1
3000 mm
Breedte verpakking 1
400 mm
Hoogte verpakking 1
60 mm
Douane code
7308909800
Netto gewicht
11,12 kg
Land van productie
NL
Certificering
ETIM classificatie
EC000047
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
