18/500 Sf Vertikalbøy

Aktiv artikkel

El nummer

1358805

Artikkelnummer: 727374

GTIN: 7321677273744

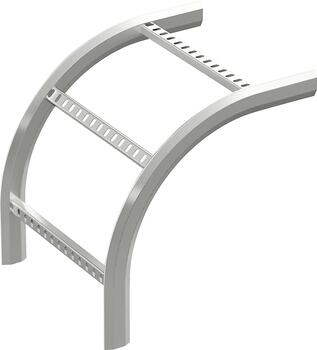

Beskrivelse: 18/500 Sf Vertikalbøy

Wibe Group. 1358805 - Wibe - Vertikalbøy 18, 500mm, Wibe, Sf, Syrefast

Konfigurator

Produktblad

Produktstatus

Aktiv artikkel

lokal kode (e-nr)

1358805

Vareteks

18/500 Sf Vertikalbøy

Vareteks medium

Vertikalbøy 18, 500mm, Wibe, Sf, Syrefast

Bredde

500 mm

Materiale

Rustfritt stål

Materialtype / overflatebehandling

AISI316L - Syrefast

Miljøkorrosjonsklasse

Aktivitet

Kabelforleggning

Produktfamilie

Kabelstiger

Fabrikat

Wibe

GTIN

7321677273744

Retningsendring (EF005210)

Loddrett stigende

Type sidebjelker (EF007666)

Rørform (lukket)

Sideveggsperforering (EF001122)

Nei

Type trinn (EF001060)

Profil, hullet

Vinkel (verdi) (EF001218)

Bøyningsuførelse (EF020423)

Glatt bøy

Hengslet (EF001076)

Nei

Kabelstige høyde (EF004818)

55 mm

Kabelstige bredde (EF004817)

500 mm

Modell / utførelse (EF000010)

Uten skjøtestykke

Innvendig radius (EF004793)

272 mm

Forsterket uførelse (EF006397)

Nei

Egnet for funksjonsopprettholdelse (EF007806)

Nei

Materiale (EF002169)

Rustfritt stål

Materialkvalitet (EF001257)

Rustfritt stål 316 Ti (1.4571)

Overflatebeskyttelse (EF000139)

Farge (EF000007)

RAL (EF000116)

Forpakning 1 type

Stykke

Mengde FP 1

Vekt FP 1

2,5 kg

Dybde FP 1

452 mm

Bredde FP 1

452 mm

Høyde FP 1

497 mm

Forpakning 4 type

Pall

Mengde FP 4

Vekt FP 4

101 kg

Dybde FP 4

1200 mm

Bredde FP 4

800 mm

Høyde FP 4

930 mm

Tolltariffnummer

73089059

Nettovekt

2,5 kg

Opprinnelsesland

ETIM-klasse

EC001535

GWP Total A1-A3

14,6 kgCO2e

Environmental Documents

El nummer

1358805

Artikkelnummer: 727374

GTIN: 7321677273744

Beskrivelse: 18/500 Sf Vertikalbøy

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
